CAD CATALOG

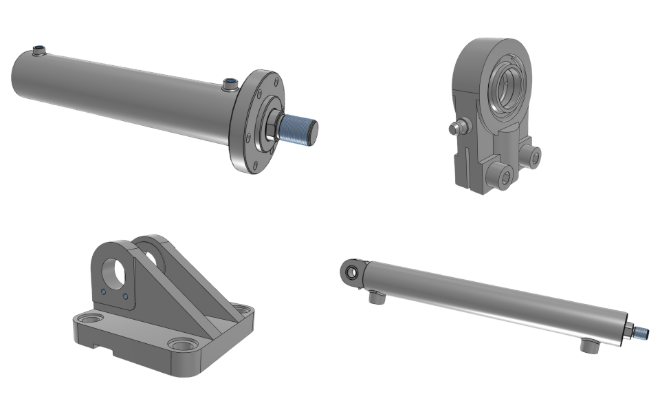

2D and 3D CAD models of Fluid System’s CH-CL welded hydraulic cylinders are now available on Cadenas — a free, global, and centralized digital platform for industrial components.
With access to all our cylinder assemblies and related accessories, your design process becomes easier, faster, and more efficient.

Enter the portal and browse our catalog — you can test a model and integrate it into your project. Our technical team is available to support you in selecting the optimal solution best suited to your needs.
